2-Door Access
Control Board
#LB-A2D
A scalable access control hub that seamlessly manages two entry points while unifying credentials, reporting, and remote control within your LobiBox platform.
Description

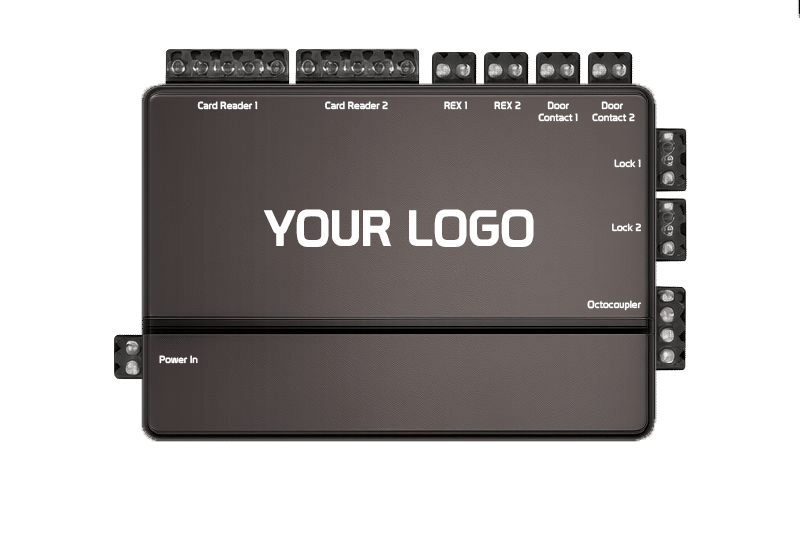

The 2-door access control board provides secure, reliable management of any-sized installation. It supports two card readers and two door lock outputs, each with dedicated REX and door contact inputs for precise monitoring and control. The board includes Ethernet connectivity with optional PoE for flexible network integration, as well as a 12VDC power input. Two optocoupler outputs allow for additional system integrations, such as alarms or indicators. Designed for scalability and efficiency, this controller ensures seamless communication between access points and central management software, delivering dependable access control for offices, residential buildings, and commercial facilities.
Features
- 2-Door Access Control Board
- 2 Card Reader Connections
- 2 Request to Exits
- 2 Door Contact Monitoring Inputs
- 2 Form C Dry Output Relays (Rated 10A)
- 2 Optocoupler Outputs
- 12VDC Input Power
Technical Specs
- Size: 6.375″W x 4.375″H x 0.75″D
- Weight: 0.5lbs
- Power: 12VDC In
- Inputs: 2 Dry Inputs Request to Exit, 2 Dry Inputs Door Contact
- Outputs: 2 Outputs Form C Rated 10A
- Card Reader Inputs: Multiple Card Types
- Maximum Credentials: 10,000
- Connectivity: Ethernet RJ45
