6-Channel Wireless
Transmitter & Receiver
#LB-WLS-TXRX6

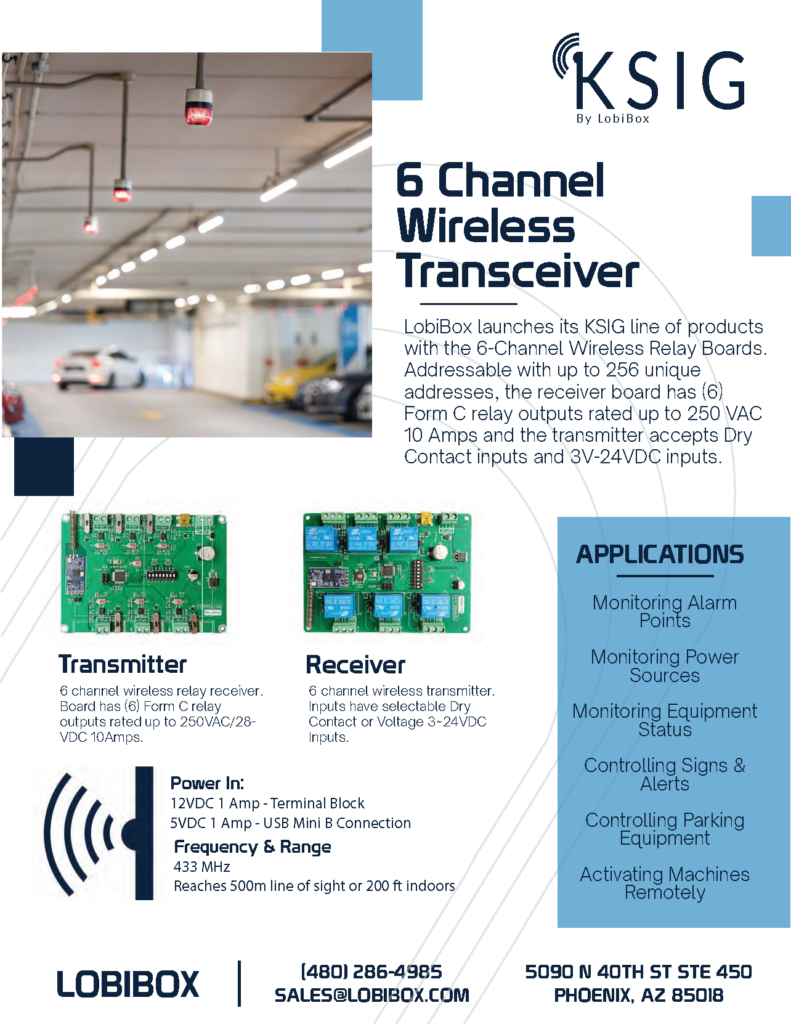

LobiBox launches its KSIG product line with the 6-Channel Wireless Relay Boards. Addressable with up to 256 unique addresses, the receiver board has (6) Form C relay outputs rated up to 250 VAC 10 Amps, and the transmitter accepts Dry Contact inputs and 3V-24VDC inputs.
Description
LobiBox introduces the KSIG 6-Channel Wireless Relay Boards—versatile, high-performance solutions for remote monitoring and control. Designed for reliability and flexibility, these boards enable seamless wireless communication between multiple devices. The receiver board features six Form C relay outputs, each rated up to 250 VAC, 10 Amps, and supports up to 256 unique addresses for fully addressable control. The transmitter accepts dry contact inputs as well as 3V–24V DC inputs, making it compatible with a wide range of sensors and devices.

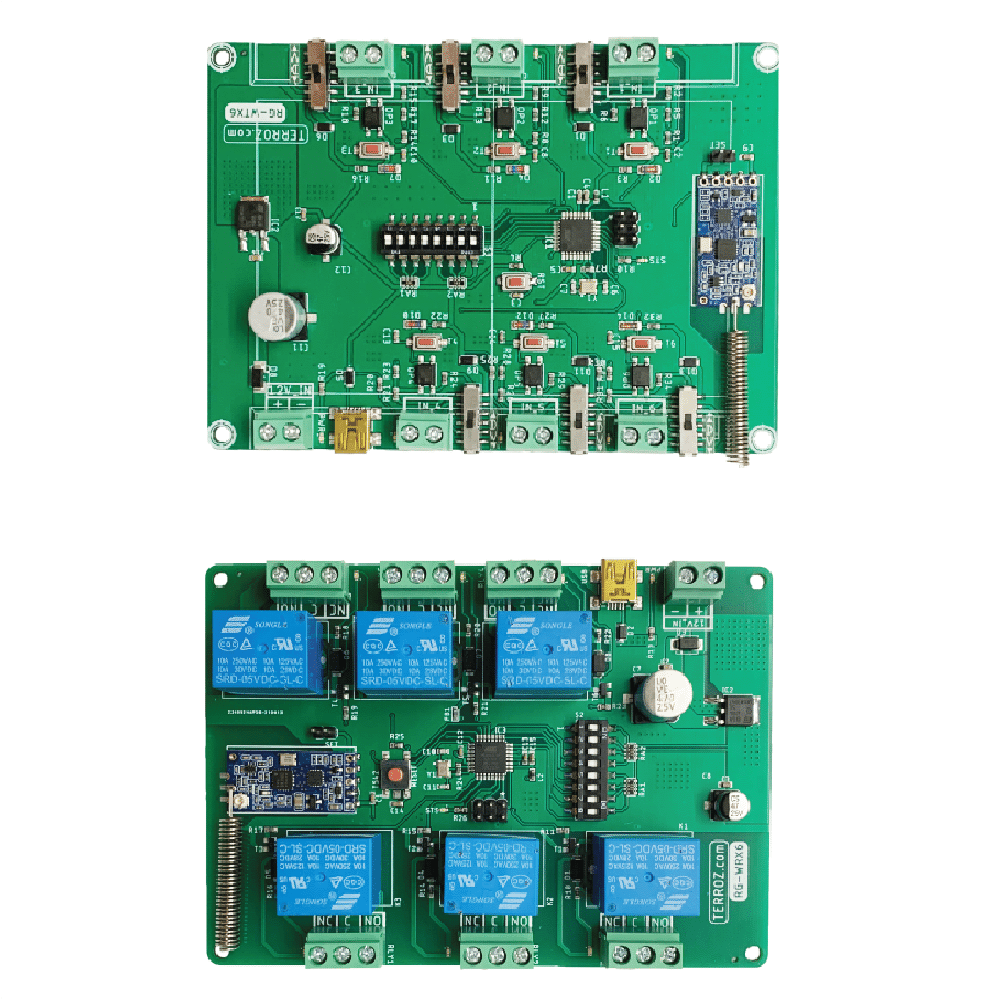

- 6-channel wireless transmitter. Inputs have selectable Dry Contact or Voltage 3~24VDC Inputs.
- 6-Channel Wireless relay receiver board has (6) Form C relay outputs rated up to 250VAC/28VDC 10A
Common Applications
Monitoring alarm points and security systems
Monitoring power sources and battery status
Tracking equipment operational status
Controlling electronic signs, alerts, and notifications
Managing parking equipment remotely
Activating machines and devices from a distance
Technical:
- Size: 4.75″H x 3 .5″W x 0.75″D (each board)
- Weight: 0.3lb (each board)
Electrical:
- Power In: 12VDC 1 A – Terminal Block / 5VDC 1 A – USB Connection
- Frequency: 433 MHz
- Range: Approximately 1500 feet line of sight, or 200 feet indoors
